Aerospace Structure

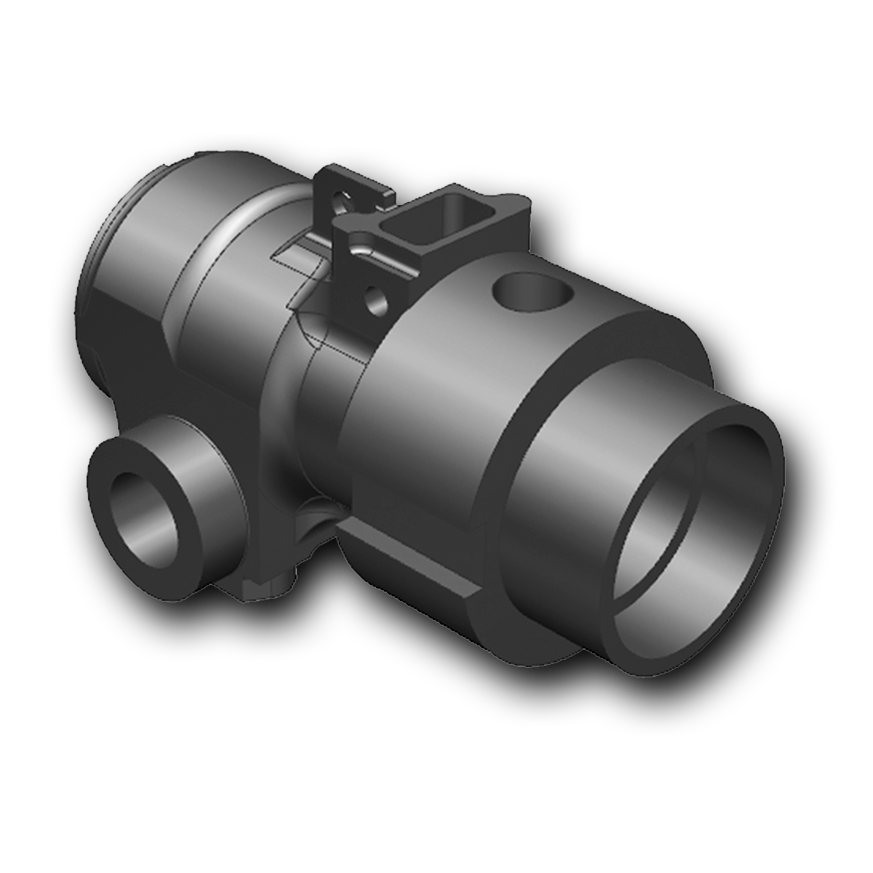

FUEL SYSTEM BOX


<div class="wp-block-group post-image-notes-cols"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-columns is-layout-flex wp-container-core-columns-is-layout-1 wp-block-columns-is-layout-flex">
<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="873" height="873" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S20.png" alt="" class="wp-image-988" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S20.png 873w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S20-768x768.png 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S20-400x400.png 400w" sizes="(max-width: 873px) 100vw, 873px" /></figure>



<p></p>
</div>



<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<h2 class="wp-block-heading">Notes</h2>



<ul class="wp-block-list"><li>Deep-hole drilling 14xD, after pilot drilling</li><li>HSK63 hydraulic chuck HP line</li></ul>



<p></p>
</div>
</div>
</div></div>



<div class="wp-block-group post-table-content-wrapper"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-group post-table"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<h3 class="wp-block-heading">Solution Specifications</h3>



<figure class="wp-block-table"><table><tbody><tr><td><strong>Material</strong></td><td>AMS 4928 + AMS 4596 Cast</td></tr><tr><td><strong>Tool Description</strong></td><td>Kennametal SC Drill Godrill Ø1,52mm</td></tr><tr><td><strong>Kennametal MM#</strong></td><td>MM 6042105 (Special, not listed on site)</td></tr><tr><td><strong>Drawing Number</strong></td><td>60471229</td></tr><tr><td><strong>Operation</strong></td><td>Pilot drilling &amp; Deep-hole drilling</td></tr><tr><td><strong>Cutting Edge</strong></td><td>Carbide</td></tr><tr><td><strong>Vc</strong></td><td>8 m/min (26 SFM) </td></tr><tr><td><strong>F</strong></td><td>0,10 mm/z (.004 IPR)</td></tr><tr><td><strong>Depth</strong></td><td>21,9 mm (.86 in)</td></tr><tr><td><strong>Pressure</strong></td><td>40 bar</td></tr><tr><td><strong>Coolant supply</strong></td><td>Internal Coolant, 40 bar</td></tr><tr><td><strong>Objective</strong></td><td>Reduce time from 50 to 10 min</td></tr><tr><td><strong>Tool Life</strong></td><td>~ 10 min</td></tr></tbody></table></figure>
</div></div>



<div class="wp-block-group"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="1500" height="1500" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S20-A2.jpg" alt="" class="wp-image-786" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S20-A2.jpg 1500w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S20-A2-768x768.jpg 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S20-A2-400x400.jpg 400w" sizes="(max-width: 1500px) 100vw, 1500px" /></figure>
</div></div>
</div></div>



<div class="wp-block-group"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-group post-image-cols"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-columns is-layout-flex wp-container-core-columns-is-layout-2 wp-block-columns-is-layout-flex">
<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow">
<figure class="wp-block-image size-large"><img loading="lazy" decoding="async" width="1500" height="1500" src="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S20-A3.jpg" alt="" class="wp-image-787" srcset="https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S20-A3.jpg 1500w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S20-A3-768x768.jpg 768w, https://api.titansofcnc.com/app/uploads/sites/2/2020/06/S20-A3-400x400.jpg 400w" sizes="(max-width: 1500px) 100vw, 1500px" /></figure>



<p></p>
</div>



<div class="wp-block-column post-image-col is-layout-flow wp-block-column-is-layout-flow"></div>
</div>
</div></div>



<div class="wp-block-group post-image-text-cols"><div class="wp-block-group__inner-container is-layout-flow wp-block-group-is-layout-flow">
<div class="wp-block-columns is-layout-flex wp-container-core-columns-is-layout-3 wp-block-columns-is-layout-flex">
<div class="wp-block-column post-image-text-col is-layout-flow wp-block-column-is-layout-flow"></div>



<div class="wp-block-column post-image-text-col is-layout-flow wp-block-column-is-layout-flow"></div>
</div>
</div></div>
</div></div>



<div class="wp-block-group is-layout-flow wp-block-group-is-layout-flow"><div class="wp-block-group__inner-container"></div></div>


One giant leap for manufacturing. Skyrocket your capabilities. Learn how to compete in the global aerospace industry. Learn cutting edge CAD/CAM/CNC, Automation, GD&T, Additive, and Business Management/Process/Quoting.  FREE education for ALL.

Fuel System Box: Drilling

Share

Notes

Solution Specifications

See where it all started

Visit our free Academy

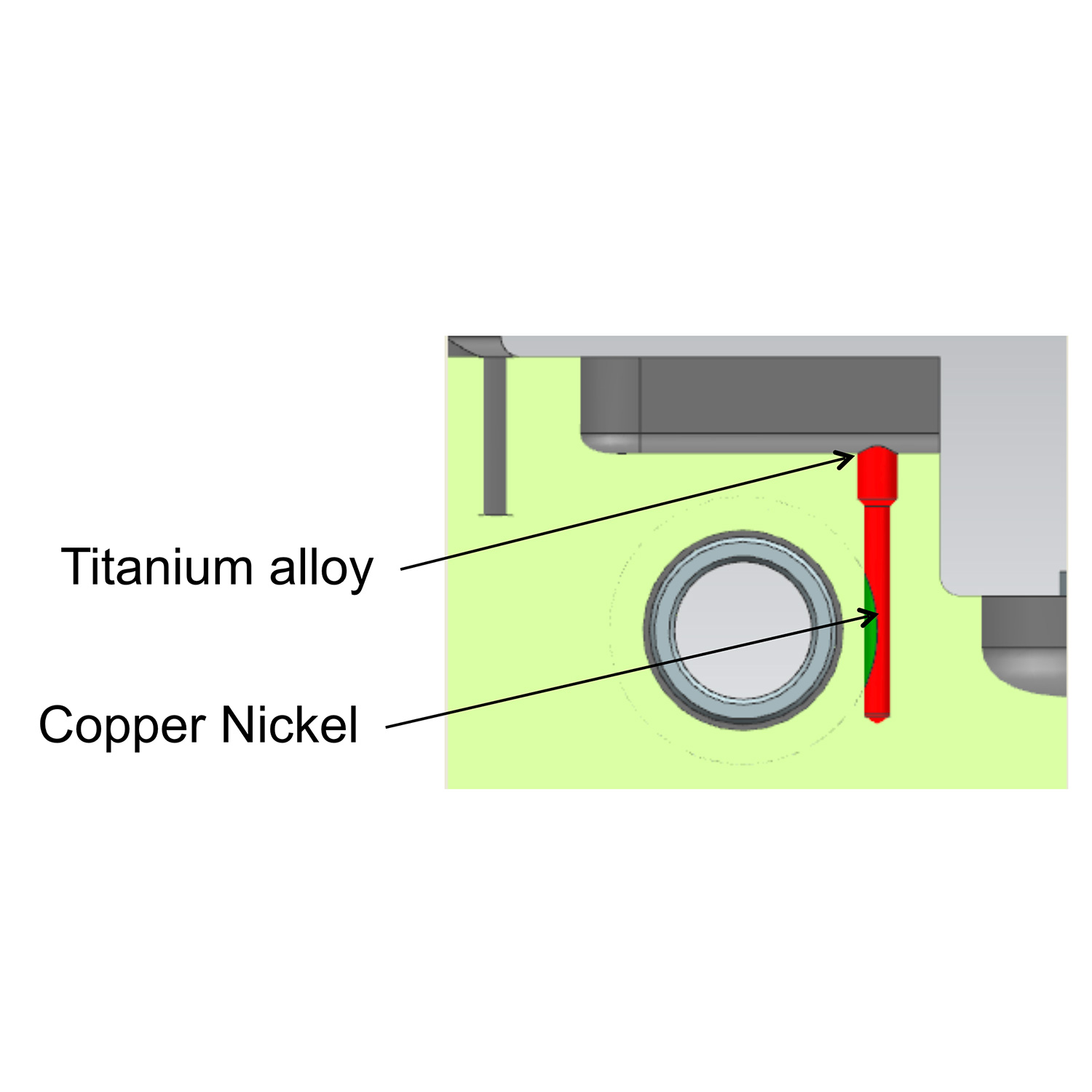

Material	AMS 4928 + AMS 4596 Cast

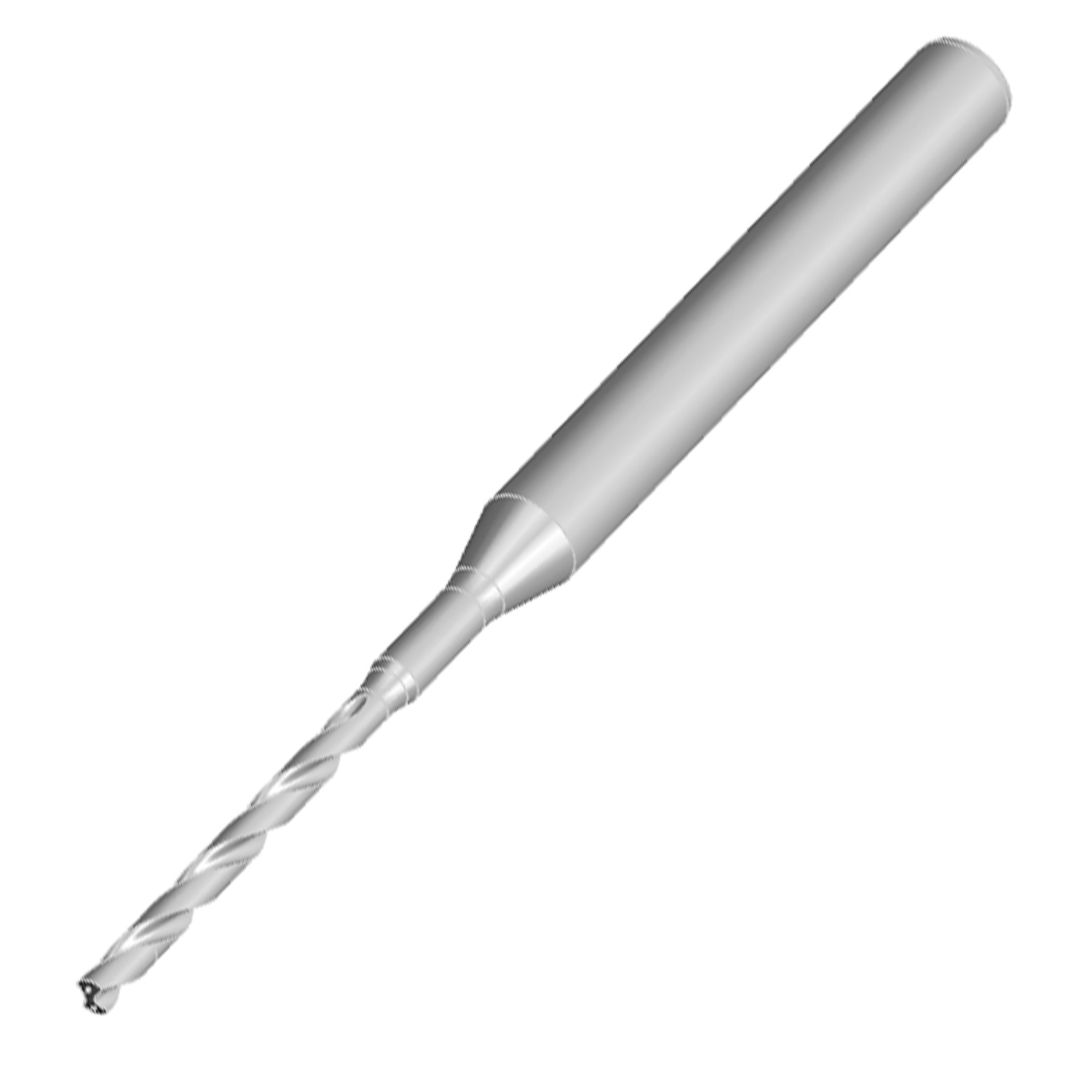

Tool Description	Kennametal SC Drill Godrill Ø1,52mm
Kennametal MM#	MM 6042105 (Special, not listed on site)
Drawing Number	60471229
Operation	Pilot drilling & Deep-hole drilling
Cutting Edge	Carbide
Vc	8 m/min (26 SFM)
F	0,10 mm/z (.004 IPR)
Depth	21,9 mm (.86 in)
Pressure	40 bar
Coolant supply	Internal Coolant, 40 bar
Objective	Reduce time from 50 to 10 min
Tool Life	~ 10 min
